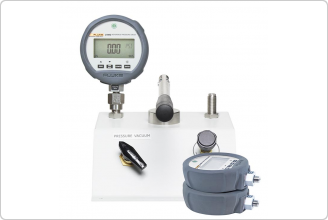

P5510-2700G, P5513-2700G Pneumatic Pressure Calibrators

The P5510-2700G Pneumatic Pressure Calibrator has a range 0 to 300 psi (20 bar); vacuum range 0 to 27 inHg (915 mbar)

This pneumatic calibrator with a 2700G Reference Pressure Gauge is designed for testing pressure measuring instruments wherever needed, using the included 2700G as the master test gauge. This cost effective instrument is portable, manually operated, requires no external bottle, and provides robust generation of pressure and vacuum up to 300 psi.

P5510-2700G features:

Built-in pump for generating both vacuum and positive pressure to 2 MPa (300 psi)
Fine needle vent valve for small adjustment and venting of pressure

The P5513-2700G Pneumatic Pressure Calibrator has a range 0 to 3000 psi (210 bar); vacuum range 0 to 24 inHg (800 mbar)

This pneumatic comparison pressure calibrator is available with up to three 2700G Reference Pressure gauges. This cost effective instrument provides precise control for important calibration requirements and includes many features found in our popular line of pneumatic deadweight testers. With operation up to 3000 psi, it can be used to provide clean testing of process critical instrumentation. Note: Unit requires pressure source (i.e. nitrogen bottle) for operation.

P5513-2700G features:
• Robust construction allowing for operation in gas to 20 MPa (3000 psi)
• Built-in screw press for fine pressure adjustments

The Fluke Calibration pneumatic calibrators are an easy-to-use alternative to traditional deadweight testers. These pressure calibrators are conveniently bundled with up to six 2700G Reference Pressure Gauges for a complete, benchtop pressure calibration solution to provide the accuracy, reliability, and capability you need to calibrate dial gauges, digital test gauges and pressure transmitters.

Best-in-class accuracy of 0.02% full scale for each 2700G Reference Gauge
Expand lower range capability with additional 2700G Reference Gauges
Adaptors to provide hand tight connection to common NPT, BSP, and metric fitting types
Included reference gauges are battery operated and capable of using line power too
Portable with a sturdy carrying case

Calibrator Model	Comparator	Reference Gauge	Range	1 Year Specification	Media Compatibility
P5510-2700G-1	P5510	2700G-BG2M	-12 to 300 psi (-80 kPa to 2 MPa)	Pressure: ± 0.6 psi (± 0.4 MPa) Vacuum: ± 0.15 psi (± 1 kPa)	Note 2
P5510-2700G-3	P5510	2700G-BG2M	-12 to 300 psi (-80 kPa to 2 MPa)	Pressure: ± 0.06 psi (± 0.4 kPa) Vacuum: ± 0.05 psi (± 0.35 kPa)	Note 2
		2700G-BG700k	-12 to 100 psi (-80 kPa to 700 MPa)	Pressure: ± 0.02 psi (± 0.14 kPa) Vacuum: ± 0.005 psi (± 0.035 kPa)	Note 2
		2700G-BG100K	-15 to 15 psi (-100 kPa to 100 kPa)	Pressure: ± 0.003 psi (± 0.02 kPa) Vacuum: ± 0.0075 psi (± 0.05 kPa)	Note 1
P5513-2700G-1	P5513	2700G-G20M	0 to 3 000 psi (0 to 20 MPa)	Pressure: ± 0.6 psi ± 0.004 MPa)	Note 3
P5513-2700G-3	P5513	2700G-G20M	0 to 3 000 psi (0 to 20 MPa)	Pressure: ± 0.6 psi ± 0.004 MPa)	Note 3
		2700G-BG7M	-12 to 1 000 psi (-80 Kpa to 7 MPa)	Pressure: ± 0.2 psi (± 0.0014 MPa) Vacuum: ± 0.05 psi (± 3.5 kPa)	Note 2
		2700G-BG700K	–12 to 100 psi (–80 kPa to 700 MPa)	Pressure: ± 0.02 psi (± 0.14 MPa) Vacuum: ± 0.005 psi (± 0.35 kPa)	Note 2
Media compatibility: Note 1: Any clean, dry non-corrosive gas Note 2: Any liquids or gases compatible with 316 stainless steel Note 3: Any non-flamable, non-toxic, non-explosive, non-oxidizing liquid or gas compatiable with 316 stainless steel

Specifications for P5510-2700G		Specifications for P5513-2700G
Pressure Range	0 to 300 psi (20 bar)	Pressure Range	0 to 3000 psi (210 bar)
Test Port Adapters	(2 sets) 1/8, 1/4, 3/8 and 1/2 NPT or BSP	Test Port Adapters	(2 sets) 1/8, 1/4, 3/8 and 1/2 NPT or BSP
Instrument Size (W x D x H)	9.5x 13 x 7 in (240 x 330 x 180 mm)	Instrument Size (W x D x H)	17.5x 12 x 8.5 in (440 x 300 x 215 mm)
Instrument Weight	7.5 lb (3.5 kg)	Instrument Weight	17 lb (8 kg)
Vacuum Range	0 to 24 inHg (800 mbar)	Gas Supply Connection	1/4 NPT female

Mechanical specifications of 2700G
Dimensions (HxWxD)	12.7 cm x 11.4 cm x 3.7 cm (5 in x 4.5 in x 1.5 in)
Pressure connection	¼ in NPT Male
Housing/weight	Cast ZNAL/0.56 kg (1.22 lb)
Display	5-1/2 digits, 16.53 mm (0.65 in) high 20-segment bar graph, 0 to 100 %
Power	Three AA alkaline batteries
Battery life	75 hours
